RFSIG-M1-X
Explore detailed specifications and features.
Specifications
Explore our product data sheets.

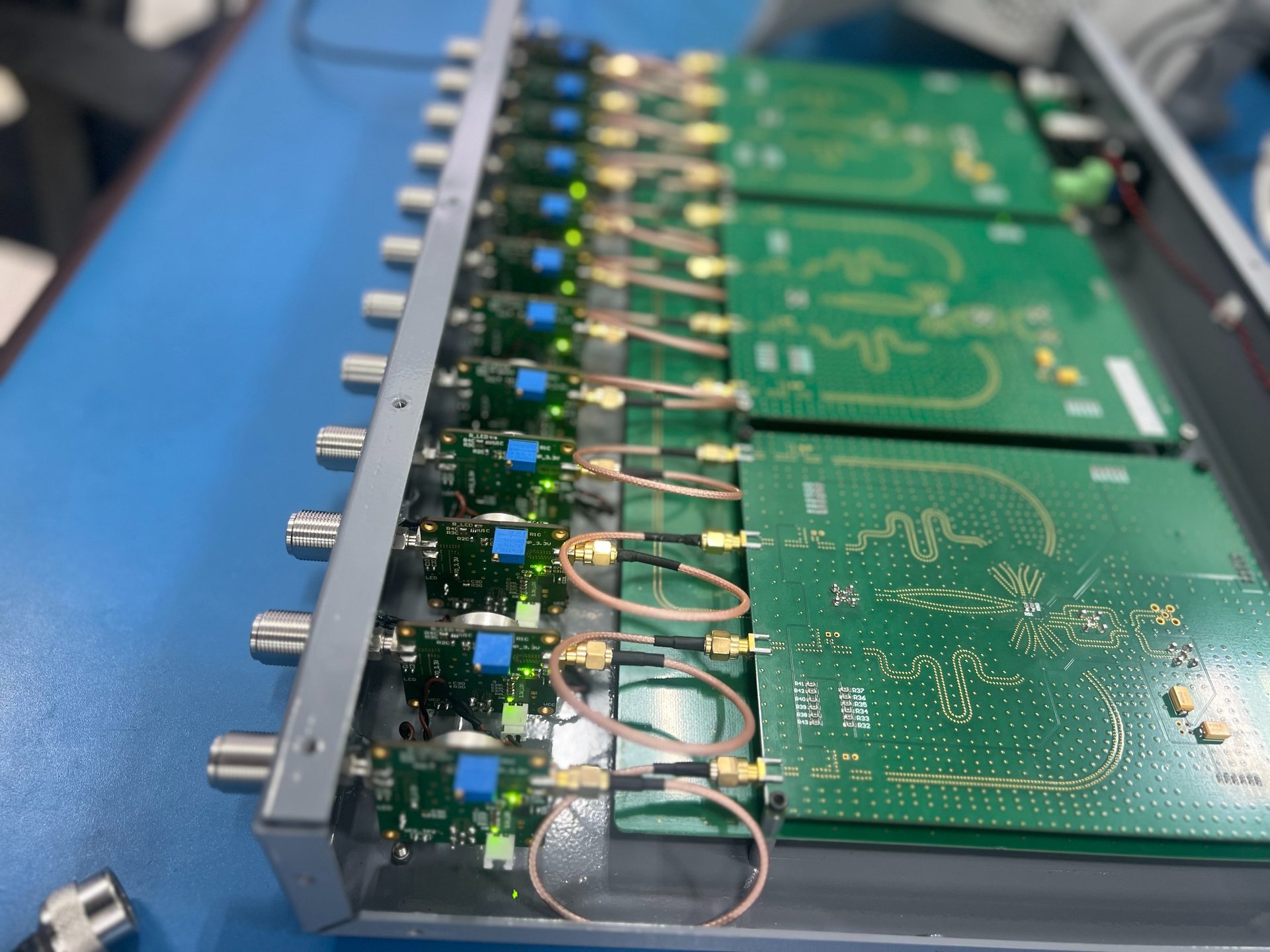

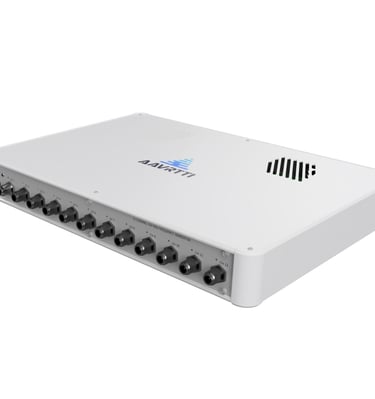

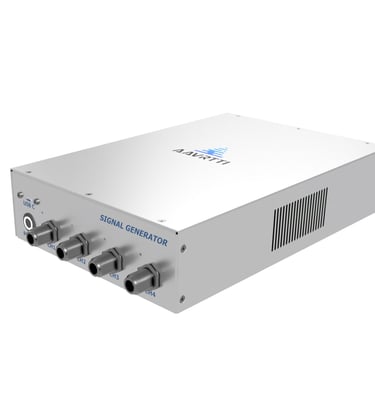

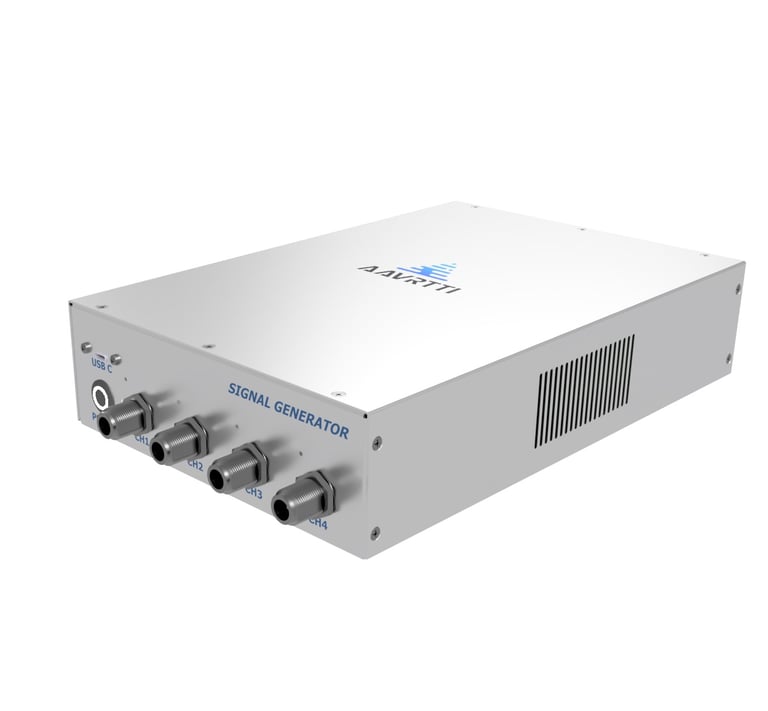

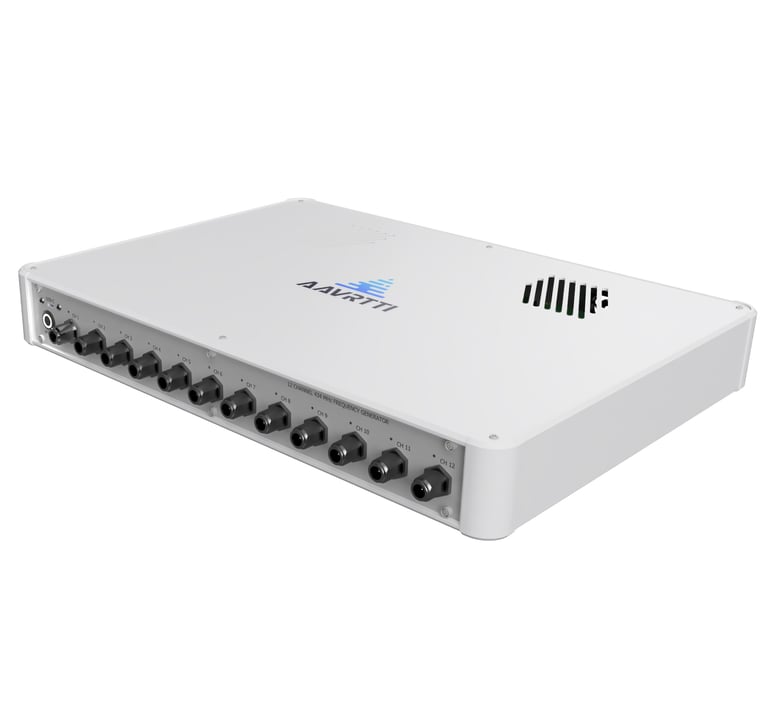

The RFSIG-M1-X is a high-performance, multi-channel RF signal generator capable of producing stable signals at 434 MHz and other frequencies. Each output channel offers independent phase control, making it ideal for phased array, beamforming, and multi-channel testing applications. The system is managed via a Python-based GUI, ensuring flexibility and user-friendly operation. In the model number, “X” denotes the number of channels, which can be 4, 8, 12, or 16 and “M1” stands for the generated output frequency.
Applications
Phased array radar / beamforming
Multi-channel signal generation / test & measurement
LO / local oscillators in RF systems
Synchronized clocking
Direction finding / Surveillance Radar
Specifications
Generated Frequencies (in MHz): 503, 434, 412.5, 390, 366.5 & 243
RF output power: 0 dBm
Phase accuracy: upto 1 degrees
Output ports: 4 to 12
Harmonics: -40 dBc
FAQ
What is a RFSIG?
Its a AD9959 DDS based signal generator capable of generating fundamental and image frequencies. SAW filters are used to isolate required frequencies
How to protect it from port mismatch?
In built circulators are used to prevent any back reflections
What are the dimensions?
For RFSIG-434-12 is 350 x 250 x 100 mm, weighing around 5-7 kgs
How many channels can be used?
Min one reference channel has to be used, max channels is user adjustable
Who can use it?
Anyone interested in generating frequencies with phase accuracy
Can I request a custom design?
Yes, contact us for personalized products
Contact
Get in touch for product details.
